Oil Spill Control Gears

PVC BOOM WGV750/WGV800/WGV900/WGV1000
WGV750mm*20m/pcs

WGV800mm*20m/pcs

WGV900mm*20m/pcs

WGV1000mm*20m/pcs

Feature:
1. Boom's membrane is PVC double-face coated reinforced fabric.
2. A top ridge rope, middle reinforced belts and a bottom balance chain on boom sections bear the longitudinal load,and form concaves both at the skirt in water and at the flexible sections above water when boom is in a current.
3. There are flexible sections between cross beam like floaters.
4. Easily connect boom sections, which are 20m long.
5. Every section has anchor seats.

6. It is used in offshore platform, harbor, lake and river where we must prepare for oil or chemical spill control system.

Technical Data


Mode;
Parameter

WGV600

 WGV700

 W6V750

 WGV800

 W6V900

 W6V1000

 W6V”00

(mm)    Overall height

    600

    700

    750

    800

    900

    1000

    1100

(mm)    Freeboard

    180

    260

    255

    250

    330

    325

    320

(mm)Draft

    320

    400

    405

    410

    540

    650

    770

(m)    Standard length per section

    201 5,10

(KN)Tensile strength

    20

    25

    30

    30

    30

    35

    35

Buoyancy to weight ratio

    3.9

    5.6

    5.2

    4.9

    6.2

    5.6

    5.5

(kgrn)  Weight

    3.7

    6.2

    6.5

    7.1

    8.4

    9.3

    9.5

(m)  Max wave height to withstand

    0.5

    1

    1.2

    1.5

    1.8

    2

    2

(ms)Max wind speed to withstand

    10

    1 5

    1 5

    1 5

    1 8

    18

    20

(KN)  Max current speed to withstand

    1

    1.5

    1.8

    2

    2

    2.5

    2.5

(m)Packing dimensions for 20m

 1󪻐.6

    1.2󪻑

1.31.11.1

1.31.11.1

1.1x1.5x1. 2

1.41.61.3

1.41.71.4

The solid float rubber boom is an important device for preventing spilled oil on waters from diffusion and transfer. It is widely used lon9—term deployment on the waters of open seasbaysharborswharfsriversoil platformsetc—or for emergent use in oil spill accidents
Technical Data

Model
Parameter

GWJ600

GWJ800

GWJ1000

GWJl200

GWJl400

GWJ 600

GWJl800

GWJ2000

Overall height(mm)

  600

  800

  1000

  1200

  1400

  1600

  1800

  2000

Freeboard(mm)

    210

    280

    340

    400

    460

    520

    590

    660

Draft(mm)

    280

    360

    480

    600

    700

    810

    900

    1000

Standard length per secition(m)

    2015,10

Float diameter(mm)

    200

    280

    31 5

    360

    420

    480

    540

    600

Number of float20m

    22

    14

    12

    12

    12

    12

    12

    12

Weight(k9m)

    5 0

    6 8

    9 2

    1 2

    13

    14

    1 5

    16

Buoyancy to weight ratio

    34

    5 8

    5 7

    5.5

    6 9

    8 3

    9 8

    11 3

Tensile ballast chain(mm)

  φ10

  φ10

  φ14

  φ16

φ16

φ18

  φ18

  φ18

Tensile strength of boom body(Kn)

  240

  320

  400

  480

  560

  640

  720

  800

Max Working tensile strength(Kn)

    50

    60

    80

    100

    110

    120

    1 20

    120

Working temperature(C)

    30~十60

Storage temperature(C)

    30+70

Max Wave speed to with stand(m)

    1 5

    2

    2

    25

    3

    3

    3.5

    3 5

Max Wind speed to with stand(ms)

    10

    1 5

    1 5

    20

    20

    20

    25

    25

Max Current speed to with stand(Kn)

    1 5

    2

    2 5

    3

    3

    3

    3

  3—4

MaxStraight-line to wing speed(Kn)

    8

Max Curved—line to wing speed(Kn)

    3

Quick connector type for both ends

    Chain typeHook type

The inflatable rubber boom is an important device for emergent control of oil spill accidentspreventing spill oil from diffusion and removing it from the polluted watersIt is widely used on the waters of open seasharborswharfsriversoffshore oil d drilling platformsand during rush rescue of vessels


Model
Parameter

QWJ800

 QWJr000

 QWJll00

 QWJl200

 QWJl400

 QWJ2000

 QWJ2600

Overall(mm)

    800

    1000

    1100

    1200

    1400

    2000

    2600

Freeboard(mm)

    280

    360

    360

    400

    500

    600

    810

Draftmm)

    370

    430

    560

    590

    700

    1100

    1400

Length per section(m)

    100 or 200

Tensile ballast chain(mm)

   φ12

   φ14

    φ14

    φ16

    φ16

   φ1 8

    φ22

Diameter of air chamber(ram)

    260

    320

    370

    425

    480

    550

    610

Length of air chamber(mm)

    3000

Volume of air chamber(L)

    160

    240

    280

    320

    420

    580

    1100

Number of air chamber(one200m)

    60

Tensile strength of boom body(Kn)

    320

    400

    440

    480

    560

    1000

    1 300

Max Working tensile strength(Kn)

    110

    140

    1 50

    1 70

    190

    260

    280

Max Wave speed to with stand(m)

    2

    2

    2

    2 5

    3

    3 5

    3 5

Max Wind speed to withstand(ms)

    1 5

    15

    18

    20

    20

    25

    25

Max Current speed to with stand(Kn)

    23

    3

    3

    34

    3d

    34

    34

Max Straight-line to wing speed(Kn)

    8

Max Curved-line to wing speed(Kn)

    3

Buoyancy to weight ratio

    7.1

    8.1

    9

    8.4

    9.9

    11

    15.3

Boom weight(K9m)

    7.2

   9.4

    9.9

    12.1

    13.2

    16.5

    22.2

Working temperature()

    30+60

Storage temperature()

    30+70

Deployment time for 200m(rain)

    15

    25

    25

    28

    30

    30

    35

Retrieval time for 200m(min)

    25

    25

    25

    30

    35

    40

    45


Accessories

Boom reel(m)

  1.7x2.2x2.3

1.7x2.2x2.3

2.0x2.2x2.3

2.2x2.2x2.3

2.4x2.2x2.4

3.2x2.2x2.4

4.0x2.2x2.4

Dimensions of container(m)

3.2X2.4x2.6

3.2x2.4x2.6

3.5x2.4x2. 6

  3.6x2.4x2. 6

  3.9x2.4x2.6

4.7x2.4x2.6

5.5x2.6

Power of hydraulic pack(KW)

    15

    14



Inflatingdeflating machine(Kw)

      2.23





OIL ABSORBENT COMPOSITE PACKAGE

oil absorbent100sheets+6pillows+6socks+2gloves+10bags
520mm*320mm*880mm

Oil absorbent sheet/pad/bar/socks

NO

PRODUCT

TYPE

ABSORBENT ABILITY(KL)

PACKING

oil absorbent sheets/pads

1201

XL20 absorbent sheet

40X50CMX2MM

96

200PCS/BOX

1251

XL 25 absorbent sheet

40X50CMX3MM

60

100PCS/BOX

1401

XL 40absorbent pad

40X50CMX5MM

96

100PCS/BOX

pp-1

Msa35 absorbent pad

1X2MX5MM

240

28PCS/BOX

pp-2

Msa70absorbent pad

1X2MX10MM

240

14PCS/BOX

10301

Msa25absorbent pad

40CMX50CMX3MM

77

100PCS/BOX

10303

Msa60 absorbent pad

40CMX50CMX9MM

72

50PCS/BOX

oil absorbent rolls

2201

CO20

40CMX60MX2MM

58

2rolls/box

2202

CO20

80CMX60MX2MM

116

1rolls/box

2251

CO25

40CMX50MX3MM

60

2rolls/box

2252

CO25

80CMX50MX3MM

120

1rolls/box

2401

CO40

40CMX30MX5MM

58

2rolls/box

2402

CO40

80CMX30MX5MM

116

1rolls/box

oil absorbent pillows

435

XL50

35CMX50CM

60

10PCS/BOX

425

XL30

25CMX35CM

72

20PCS/BOX

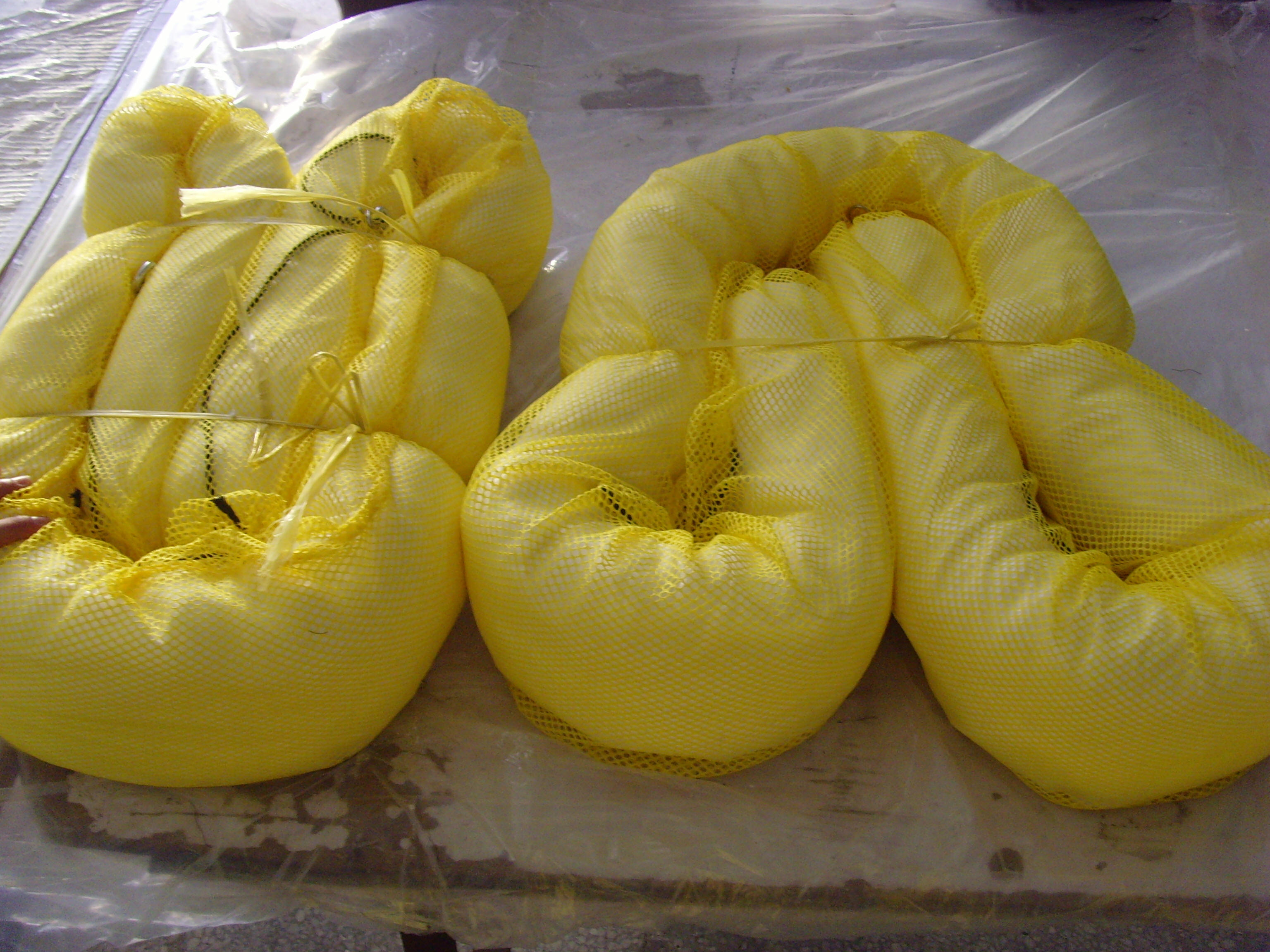

oil absorbent socks/bars/backs/

781

XL45

φ7.6CMX120CM

65

12 PCS/BOX

7133

XL 500

φ12.7CMX300CM

120

2 PCS/BOX

71305

XL50

φ12.7CMX50CM

65

12 PCS/BOX

72005

XL100

φ20CMX50CM

72

6 PCS/BOX

oil absorbent booms

5202

XL500

φ20CMX200CM

72

2 PCS/BOX

5133

XL500

φ12.7CMX300CM

60

2 PCS/BOX

Liquid sorbent products

91251

XL25

40X50CMX3MM

60

100PCS/BOX

92251

CO25

40CMX50MX3MM

58

2rolls/box

9425

XL30

25CMX35CM

72

20PCS/BOX

97812

XL45

φ7.6CMX120CM

65

12 PCS/BOX

Wipe paper

2601

CO6

24CMX220M

152

4 rolls/box

3601

CO6

24CMX220M

152

4 rolls/box

32630

882

26CMX30000CM



2 rolls/box

32538

W3

25CMX38CMX500PCS



4 rolls/box

33035

W1

30CMX35CMX300PCS



6 boxs /box

3446



4”X4”600PCS/BOX



30 boxs /box

3993



9”X9”300PCS/BOX



12 boxs /box

Emergency absorbent kit

8501

Emergency absorbent kit

100sheets+6pillows+6socks+2gloves+10bags

8502

Emergency absorbent kit

50sheets+4pillows+4socks+2gloves+10bags
